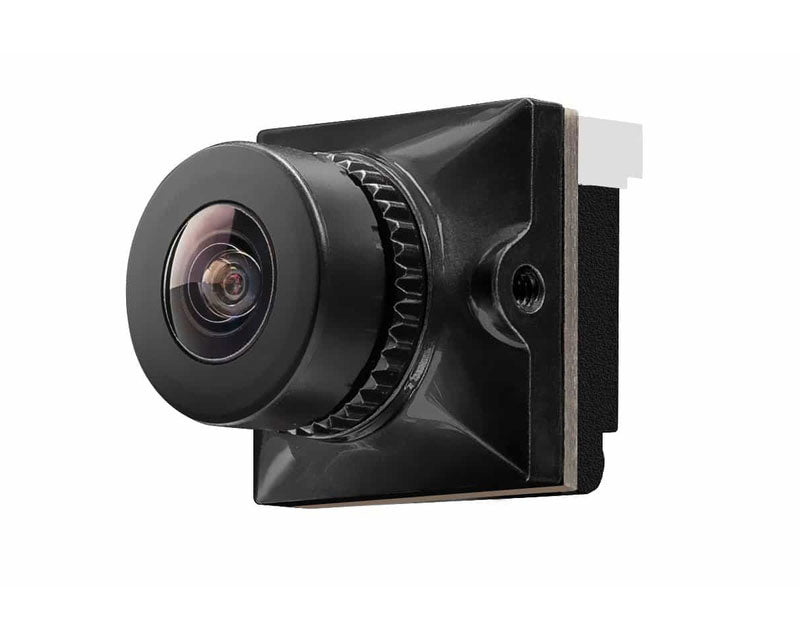

Analog camera Caddx Ratel 2

Analog camera Caddx Ratel 2

The Caddx Ratel 2 is a high-performance analog FPV camera built around a large 1/1.8-inch starlight sensor.

With 1200TVL resolution, Super WDR, excellent low-light performance and a wide 165° field of view, the Ratel 2 delivers a clear and detailed FPV image across changing lighting conditions.

Its wide DC 5–40V input range makes it easy to integrate into a variety of FPV and UAV platforms.

Key Features

• 1/1.8" starlight image sensor
• 1200TVL horizontal resolution
• Super WDR (HDR)
• Excellent low-light performance
• 165° wide field of view
• NTSC / PAL switchable
• 16:9 / 4:3 switchable
• 3D noise reduction
• Camera OSD support
• Wide DC 5–40V input
• Compact 19 × 19 mm form factor
• Lightweight 5.9 g design

Wide Dynamic Range

Super WDR helps preserve details when bright and dark areas appear in the same scene. This makes the Ratel 2 suitable for FPV operation in environments with rapidly changing light conditions.

Low-Light Performance

The large 1/1.8-inch starlight sensor provides strong low-light visibility while maintaining image detail, making the camera suitable for dusk, low-light and other demanding environments.

Wide 165° Field of View

The wide field of view provides increased situational awareness and allows the pilot to see more of the surrounding environment.

Wide Voltage Input

With a DC 5–40V input range, the Ratel 2 can be integrated into a wide variety of FPV power systems.

Package Contents

• 1 × Caddx Ratel 2 Camera
• 1 × 2-pin Silicone Cable
• 1 × 3-pin Silicone Cable

Applications

Suitable for:

• FPV drones
• Freestyle FPV builds
• Racing platforms
• Custom UAV systems
• Low-light FPV applications
• Replacement and upgrade projects
